Bistro 12V String Light Kit

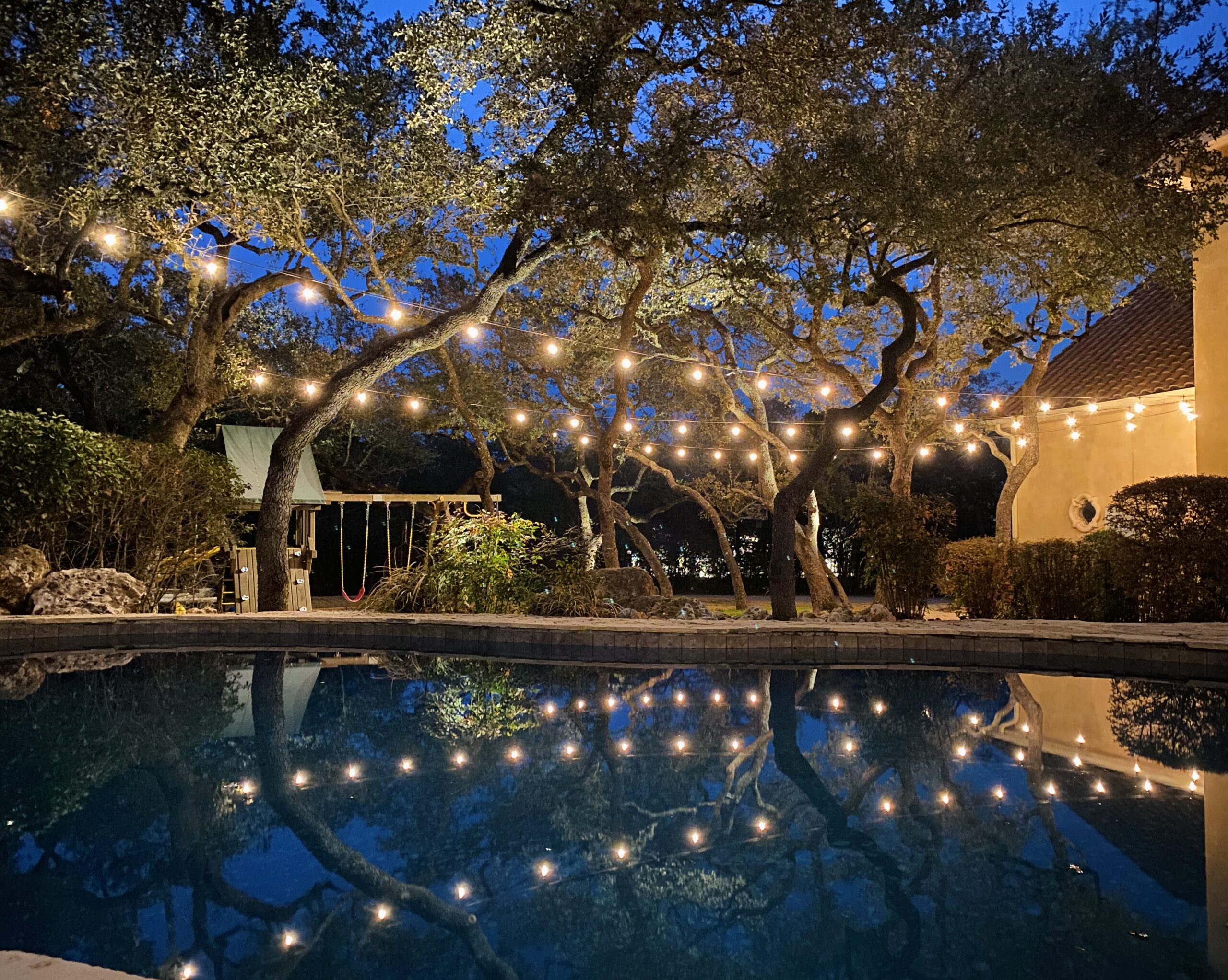

A great addition to any outdoor lighting job, bistro lights add a touch of elegance and ambience for entertaining. The Brilliance Bistro 12 Volt String Kit comes in 26 ft., 52 ft, 98 ft and 150 ft kit options. Use this low voltage bistro string with the corresponding low voltage string connection accessories for custom length bistro lighting. This string is for use with low voltage lamps only. Dimmable with Brilliance Dimmer and most magnetic transformers. Each kit includes bistro string and a hanging kit. Lamps and connector accessories sold separately.

NEC® Article 411.5 (B): Lighting systems shall be installed not less than 3m (10ft) horizontally from the nearest edge of the water, unless permitted by Article 680.

BISTRO 12V STRING KIT FEATURES:

  • Patented design (U.S. Patent D898986S)
  • Uses 14 AGW cable and features a waterproof seal
  • Two-way mounting holes at each lamp position eliminate the need for zip ties and creates a more secure installation for the life of the string lights
  • Fully Dimmable

Description

The Low Voltage Bistro String Straight Connector is an accessory to customize the length of the Low Voltage Bistro String Reel only. Use with Brilliance Low Voltage Bistro String to convert low voltage landscape lighting cable to SO (stranded oil resistant) cable. Order one Low Voltage Bistro String Straight Connector for each instance in which you have to convert low voltage landscape lighting cable to SO cable.

INSTALLING THE BISTRO STRING STRAIGHT CONNECTOR TO THE LANDSCAPE CABLE SIDE

  1. Unscrew the plastic nut from the straight connector.

  2. Use needle nose pliers to gently remove the two-hole rubber grommet from the throat coupler.

  3. Unscrew the throat coupler from the center coupler.

  4. Using a Philips screwdriver, unscrew the two cable terminals on either side from each other. The middle terminal is not used for two conductor landscape cable.

  5. Strip the landscape cable approximately 1/2 inch.

  6. Pass the landscape cable through the nut rounded side first.

  7. Splitting the cable apart, insert each conductor through the holes of the two-hole rubber grommet.

  8. Pass the landscape cable through the large side of the throat coupler with the fin side first.

  9. Insert one side of the split cable into the open cable terminals and tighten the terminal screw. Repeat this step for the other side of the split cable.

  10. Once both conductors have been attached, thread the throat coupler to the center coupler on the terminal side and screw them together to tighten.

  11. Position the two-hole rubber grommet into the fin side of the throat coupler.

  12. Thread the compression nut back on to the fin side of the throat coupler.

  13. Hand tighten until the landscape cable has been compressed. Do not overtighten.

INSTALLING THE BISTRO STRING STRAIGHT CONNECTOR TO THE SO CABLE SIDE

  1. Unscrew the plastic nut from the SO Cable side of the connection.

  2. Use needle nose pliers to gently remove the one-hole rubber grommet from the throat coupler.

  3. Unscrew the throat coupler from the center coupler.

  4. Using a Philips screwdriver, unscrew the two cable terminals on either side from each other. The middle terminal is not used for two conductor SO cable.

  5. Strip the SO cable to reveal the black and white conductors, approximately 1-1/2 inches.

  6. Pass the plastic compression nut over the SO cable rounded side first.

  7. Insert the SO cable through the hole of the rubber grommet.

  8. Pass the SO cable through the small side of the throat coupler with the fin side first.

  9. Insert the black and white conductors into the opened terminals. Tighten both terminal screws.

  10. Once both conductors have been attached, thread the throat coupler to the center coupler terminal side and screw together to tighten.

  11. Position the one-hole rubber grommet into the fin side of the throat coupler.

  12. Thread the compression nut back on to the fin side of the throat coupler. Hand tighten until the SO cable has been compressed. Do not overtighten.

The Low Voltage Bistro String T Connector is an accessory to customize the length of the Low Voltage Bistro String Reel only. Use with Brilliance Low Voltage Bistro String for wherever you want to change directions, or when you need to combine two sections of SO (stranded oil resistant) cable. Order one Low Voltage Bistro String T Connector for each center feed used.

INSTALLING THE BISTRO STRING T CONNECTOR

  1. Unscrew the plastic nut from the SO Cable side of the connection.

  2. Use needle nose pliers to gently remove the one-hole rubber grommet from the throat coupler.

  3. Unscrew the throat coupler from the center coupler.

  4. Using a Philips screwdriver, unscrew the two cable terminals on either side from each other. The middle terminal is not used for two conductor SO cable.

  5. Strip the SO cable to reveal the black and white conductors, approximately 1-1/2 inches.

  6. Pass the plastic compression nut over the SO cable with the rounded side first.

  7. Insert the SO cable through the hole of the rubber grommet.

  8. Pass the SO cable through the large side of the throat coupler with the fin side first.

  9. Insert the black and white conductors into the opened terminals. Tighten both terminal screws.

  10. Once both conductors are attached, thread the throat coupler to the center on the terminal side and screw them together to tighten.

  11. Position the one-hole rubber grommet into the fin side of the throat coupler.

  12. Thread the compression nut back on to the fin side of the throat coupler. Hand tighten until the SO cable has been compressed. Do not overtighten.

  13. Repeat these instructions for each side of the T connection.

The Low Voltage Bistro String End Cap is an accessory to customize the length of the Low Voltage Bistro String Reel only. Use with Brilliance Low Voltage Bistro String for wherever you have an end of SO (stranded oil resistant) cable. Order one Low Voltage Bistro String End cap for each string end.

INSTALLING THE BISTRO STRING END CAP

  1. Examine the end of the SO cable.

  2. Be certain that none of the conductors or strands of cable are touching each other.

  3. Apply a small amount of silicone to the end of the SO cable.

  4. Slide the end cap over the SO cable jacket to secure it. Refer to the silicone manufacturer’s information for recommended cure time.
