Black Diamond Modern Path Light in Black and Bronze

Black Diamond Modern Path Light

The Black Diamond Modern Path Light is available without a lamp or with a G4 Wafer lamp (3W 2700K 120° beam spread 300 Lumens) to be installed. Simply install the lamp and screw on the glass lens. This modern fixture is a downward facing path light perfecto for path, area, and garden accent lighting. This fixture comes in a black or bronze (BZ) baked enamel finish.

See other options in the Black Diamond line of fixtures: Black Diamond Directional Light, Black Diamond Path Light, Black Diamond Wall Wash, Black Diamond MR16 Well Light, and Black Diamond PAR36 Well Light.

Find a Distributor
Become a Distributor

Description

CUT SHEET
BLACK DIAMOND PATH LIGHT FLYER
BLACK DIAMOND FLYER

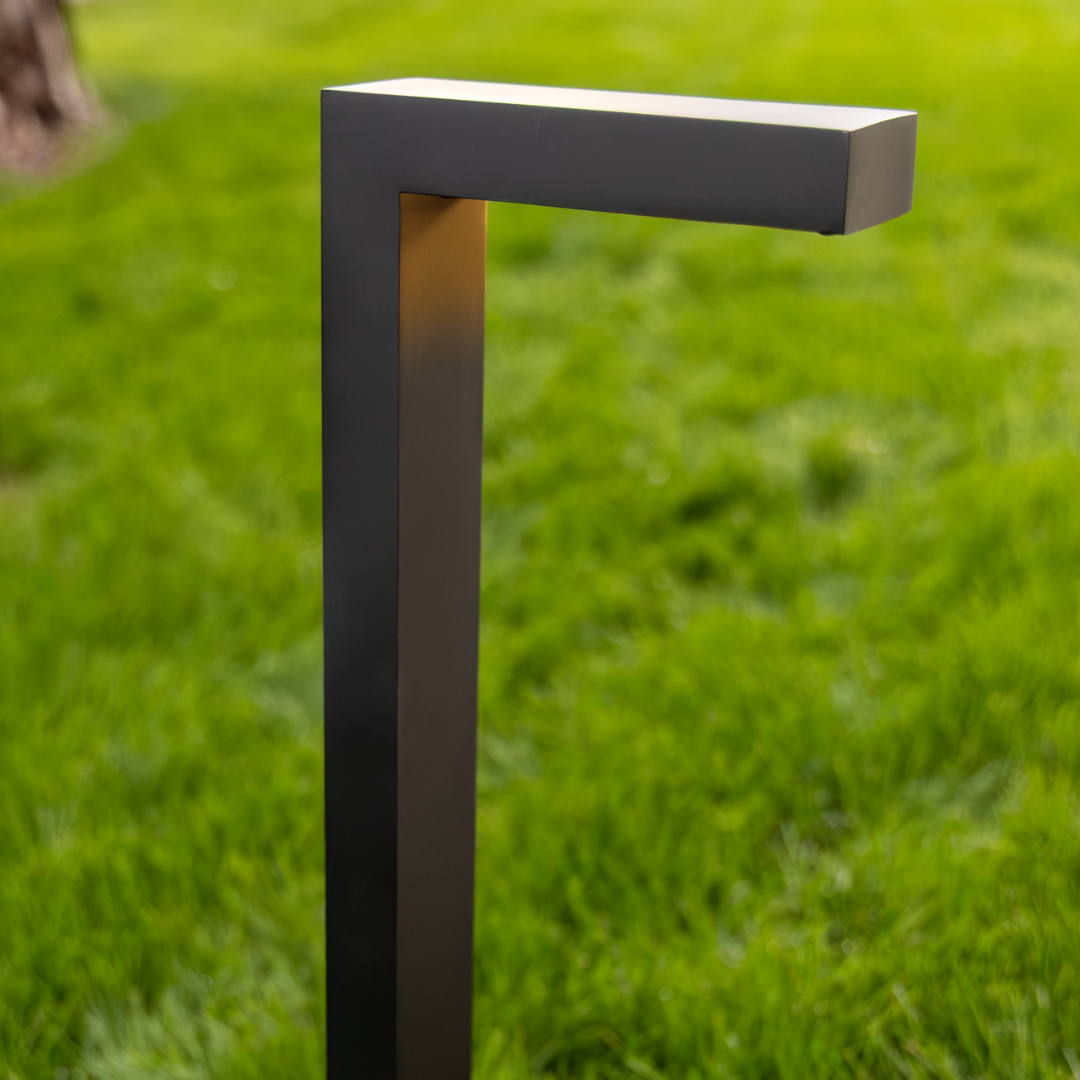

The Black Diamond Modern Path Light is available in Black Brass and Bronze finishes.

To clean the fixture, periodically wipe it down with a mild soap and water.

SOFT SOIL APPLICATIONS: INSTALLING THE GROUND STAKE & FIXTURE

  1. Connect the power cable from the fixture body to the landscape cable.

  2. Lay the power cable into the slotted relief on the stake.

  3. Press the fixture and stake into the ground.

  4. Use a level to ensure the top of the stake is level with the ground.

HARD SOIL APPLICATIONS: INSTALLING THE GROUND STAKE & FIXTURE

  1. Unscrew the fixture body from the stake.

  2. Dig a hole approximately 4” wide by 10” deep and gently tap the stake into the ground with a rubber mallet.

  3. Use a level to ensure the top of the stake is level with the ground.

  4. Reinstall the fixture body onto the stake and lay the power cable into the slotted relief on the stake.

  5. Connect the power cable from the fixture body to the landscape cable.

INSTALLING THE LAMP

  1. Loosen the screw for the lens cover.
  2. Install the G4 Wafer into the socket.
  3. Place the lens cover back on the fixture body.
  4. Tighten the screw for the lens cover.
  5.
