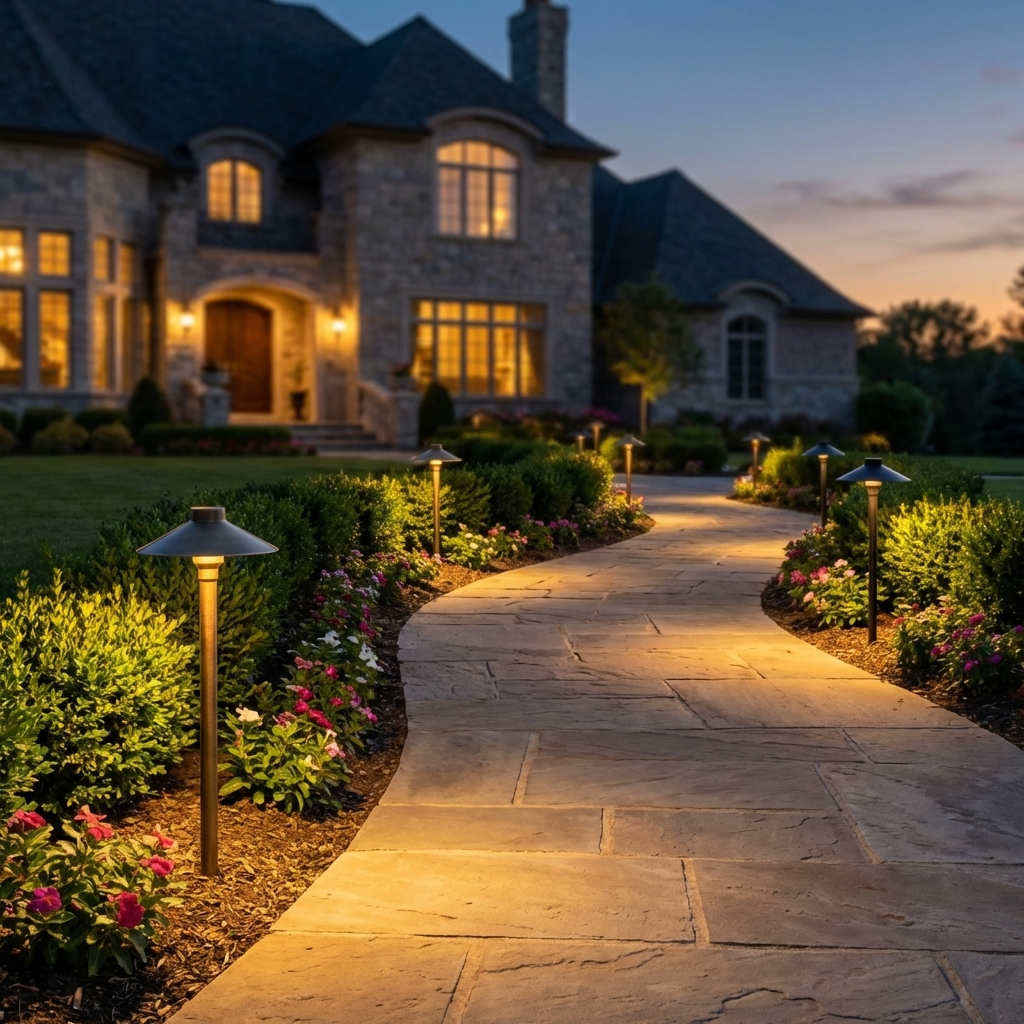

Black Diamond Path Light

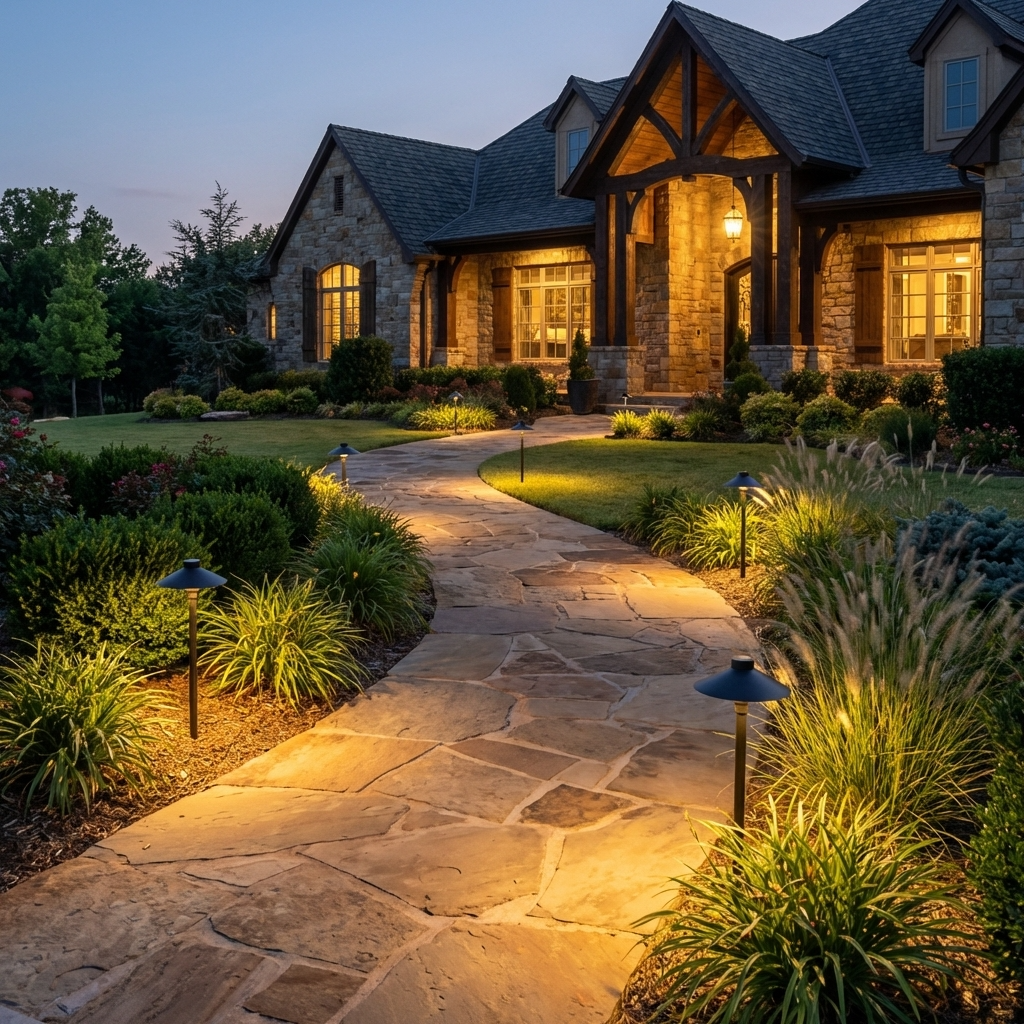

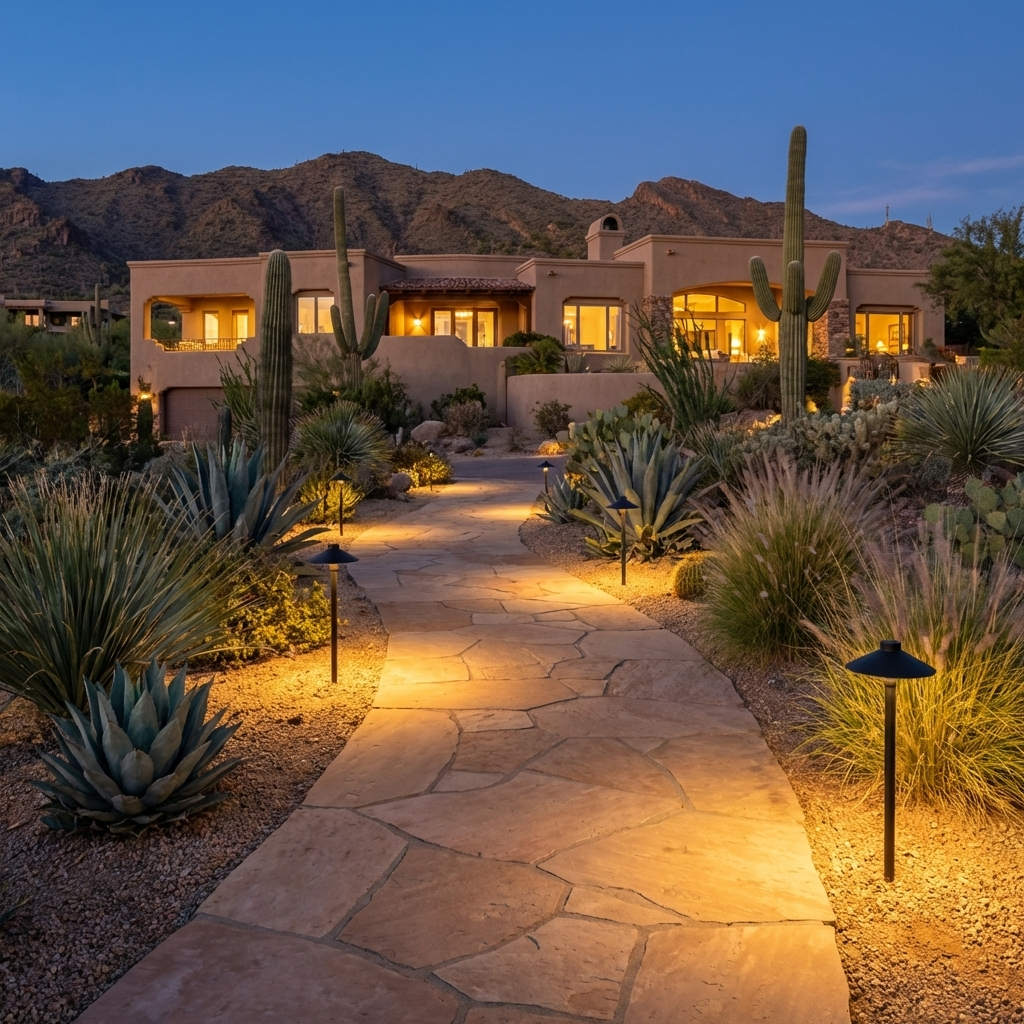

Black Diamond Path Light in Black

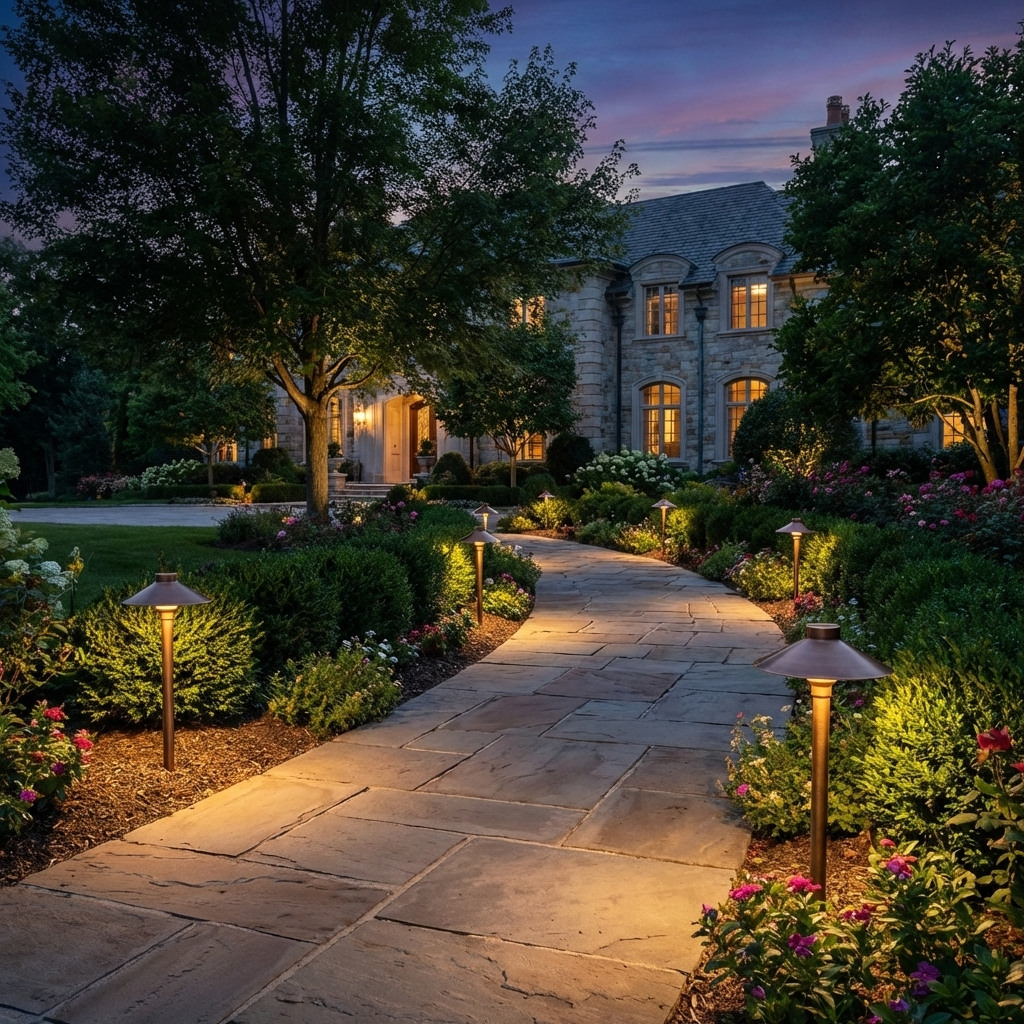

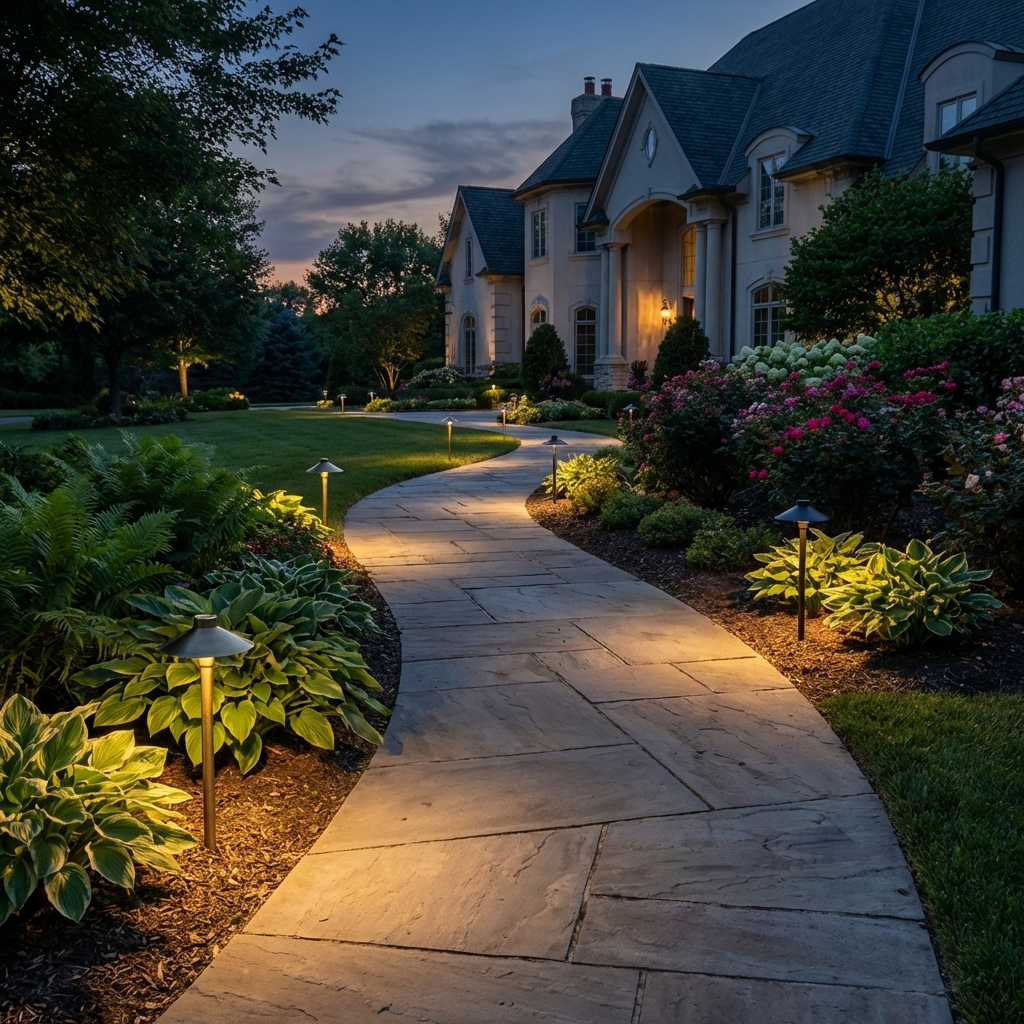

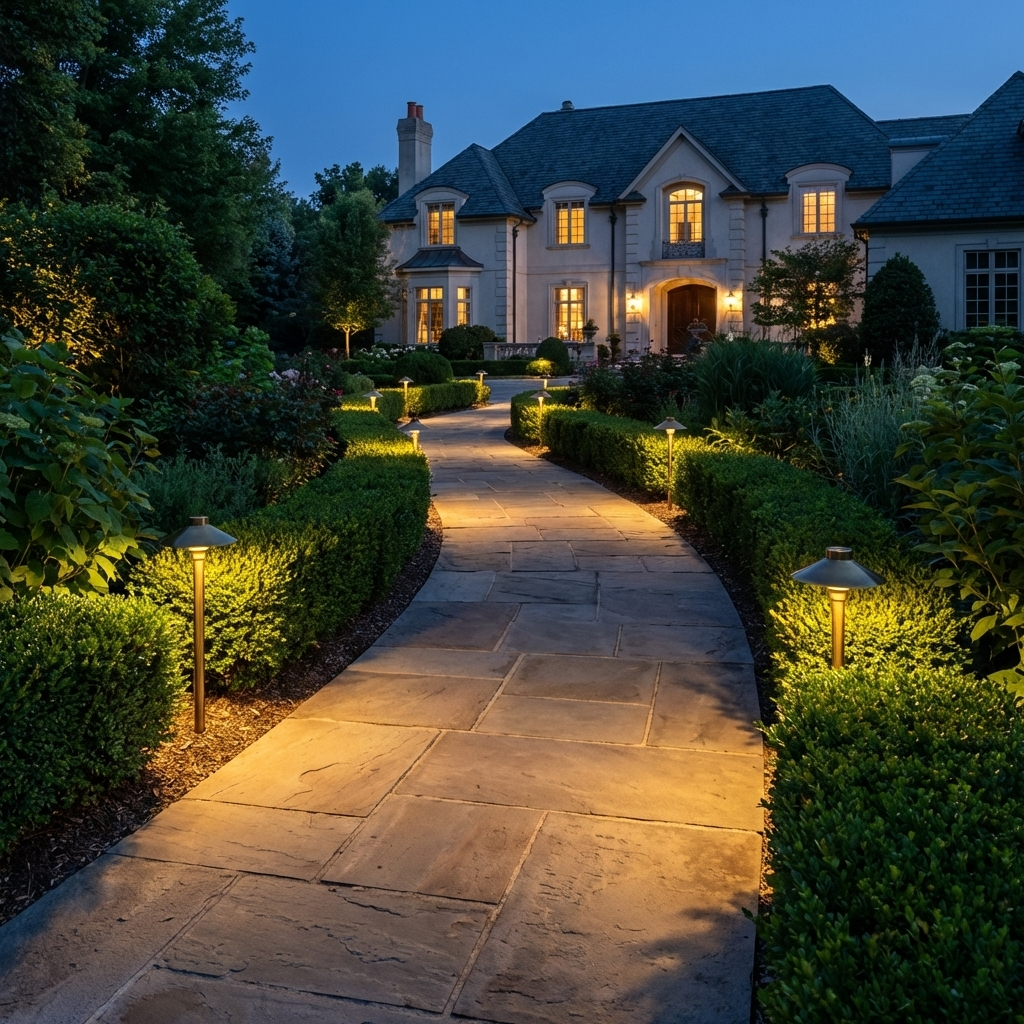

Black Diamond Path Light in Bronze

Black Diamond Path Light

The Black Diamond Path Light is available without a lamp or with a G4 Ecostar lamp to be installed. Simply install the lamp and screw on the Black Diamond Path Light top. The threaded top design allows the top to stay straight on the fixture, and also includes a white reflective surface underneath. The spun brass construction features a baked enamel finish in black (BK) or bronze (BZ). Overall height is 18.25”.

See other options in the Black Diamond line of fixtures: Black Diamond Directional Light, Black Diamond Wall Wash, Black Diamond MR16 Well Light, Black Diamond PAR36 Well Light and Black Diamond Modern Path Light.

Reviews (0)

Description

The Black Diamond Path Light is available in Black Brass or Bronze finishes.

To clean the fixture, periodically wipe it down with a mild soap and water.

SOFT SOIL APPLICATIONS: INSTALLING THE GROUND STAKE & FIXTURE

Connect the power cable from the fixture body to the landscape cable.
Lay the power cable into the slotted relief on the stake.
Press the fixture and stake into the ground.
Use a level to ensure the top of the stake is level with the ground.

HARD SOIL APPLICATIONS: INSTALLING THE GROUND STAKE & FIXTURE

Unscrew the fixture body from the stake.
Dig a hole approximately 4” wide by 10” deep and gently tap the stake into the ground with a rubber mallet.
Use a level to ensure the top of the stake is level with the ground.
Reinstall the fixture body onto the stake and lay the power cable into the slotted relief on the stake.
Connect the power cable from the fixture body to the landscape cable.

INSTALLING THE LAMP

Loosen the threaded jam nut toward the stem.
Unscrew the lid from the stem.
Install the Beacon G4 Bi-Pin into the socket.
Screw the lid onto the stem.
Adjust the threaded ring until you achieve the light pattern you want.
