Guadalupe

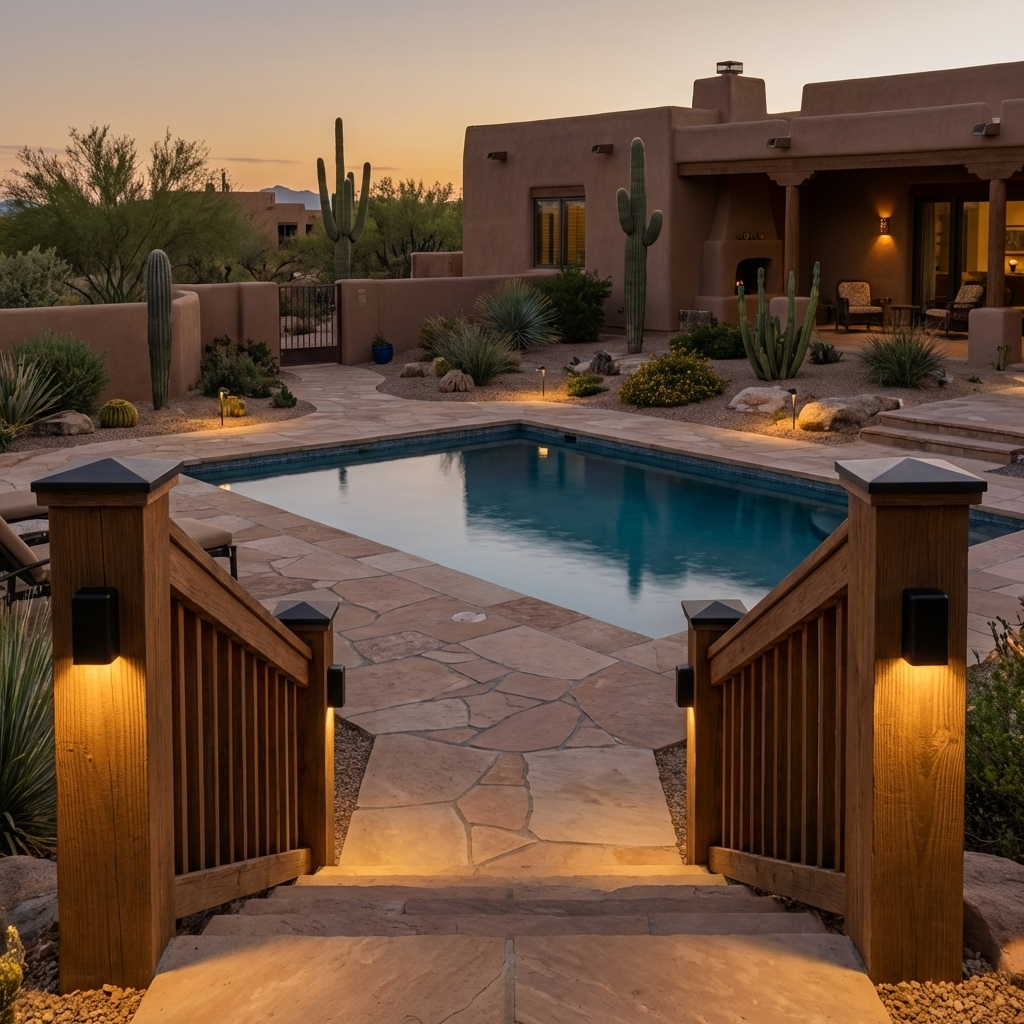

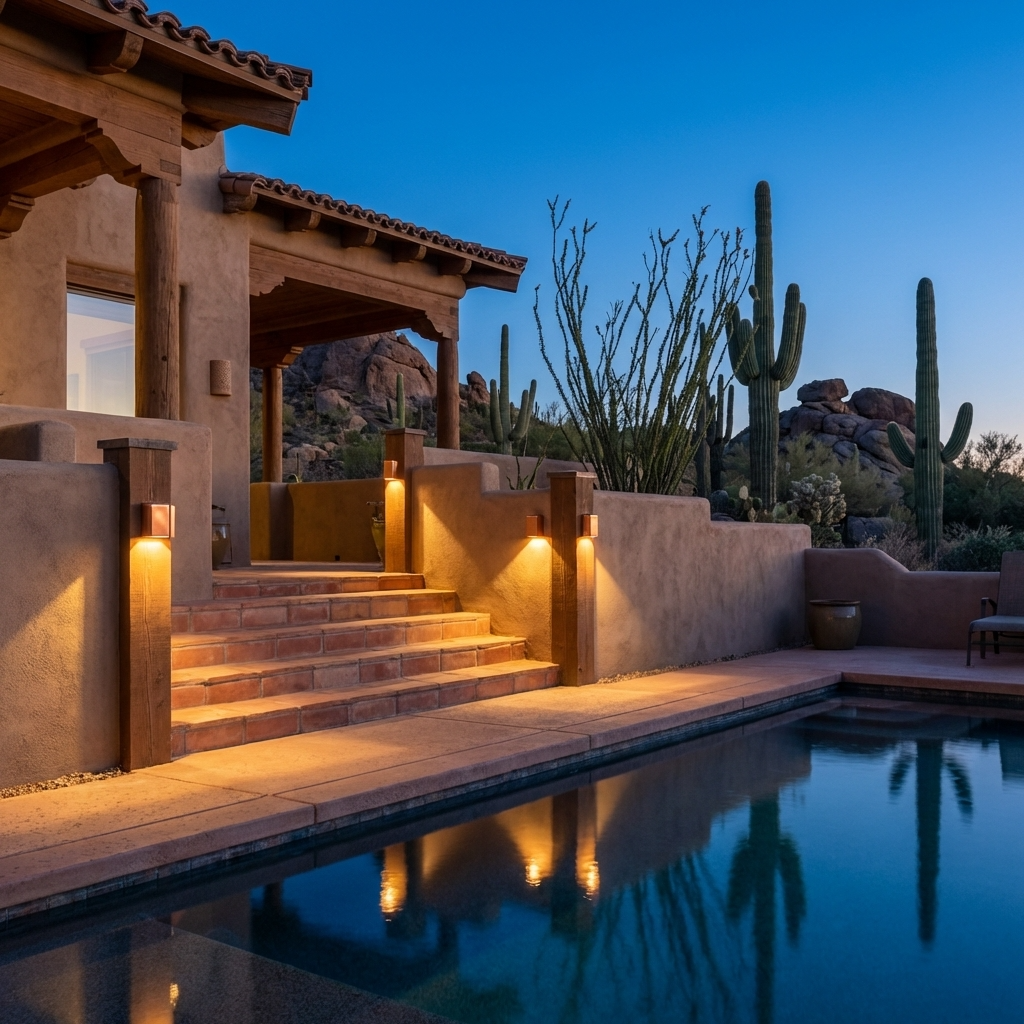

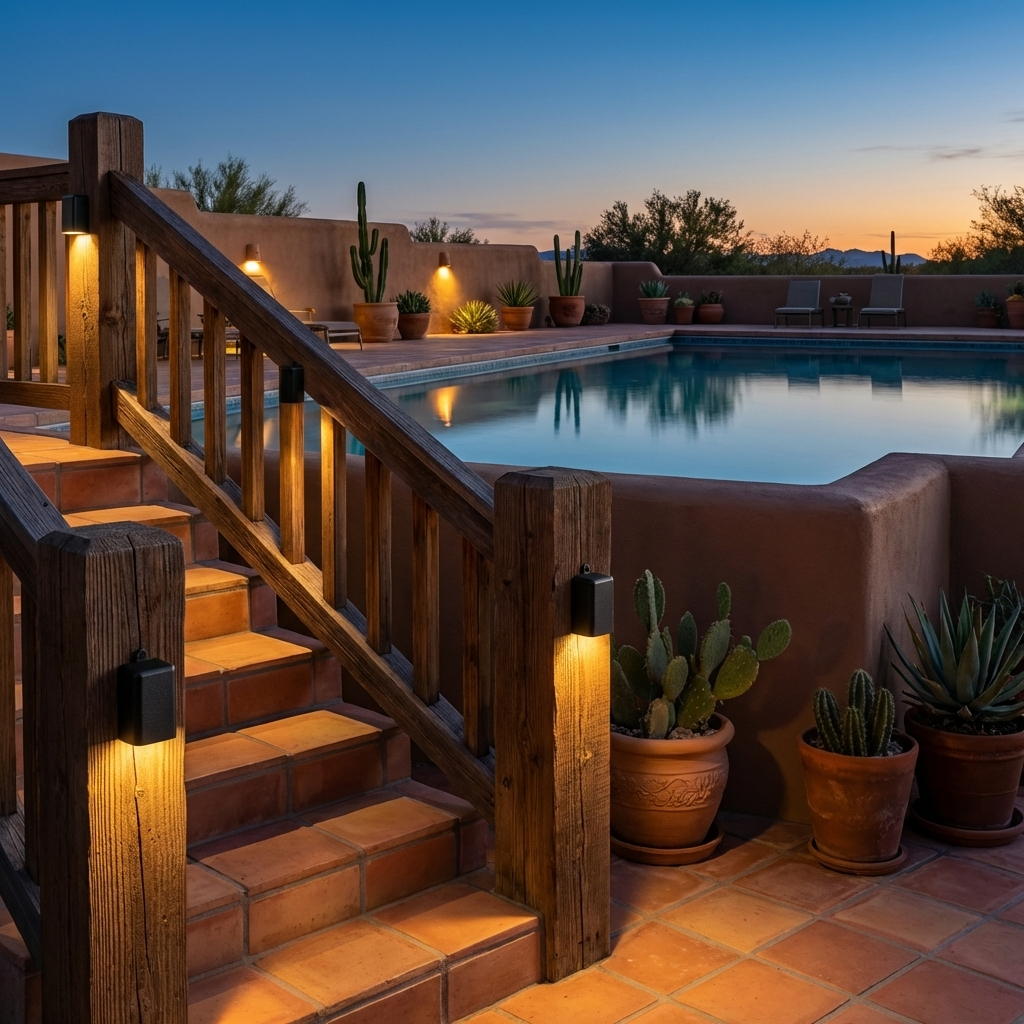

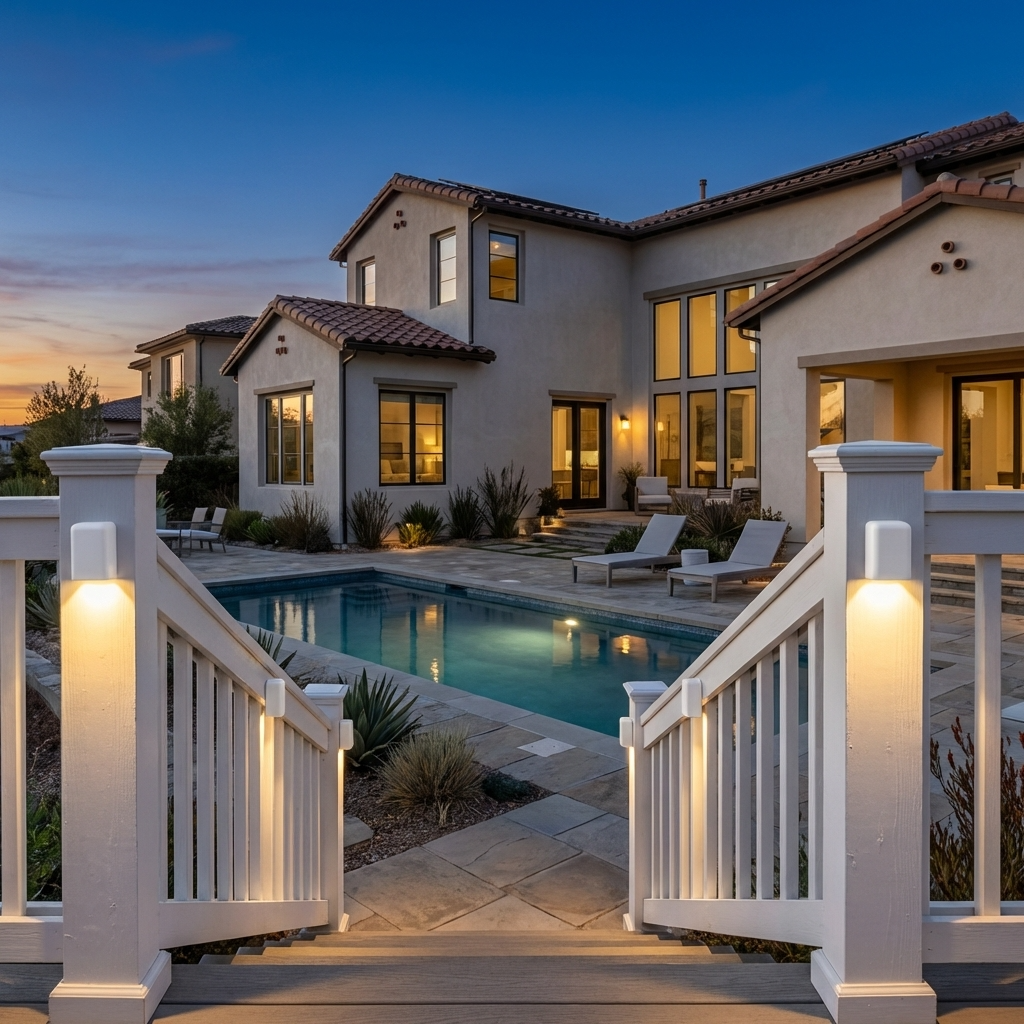

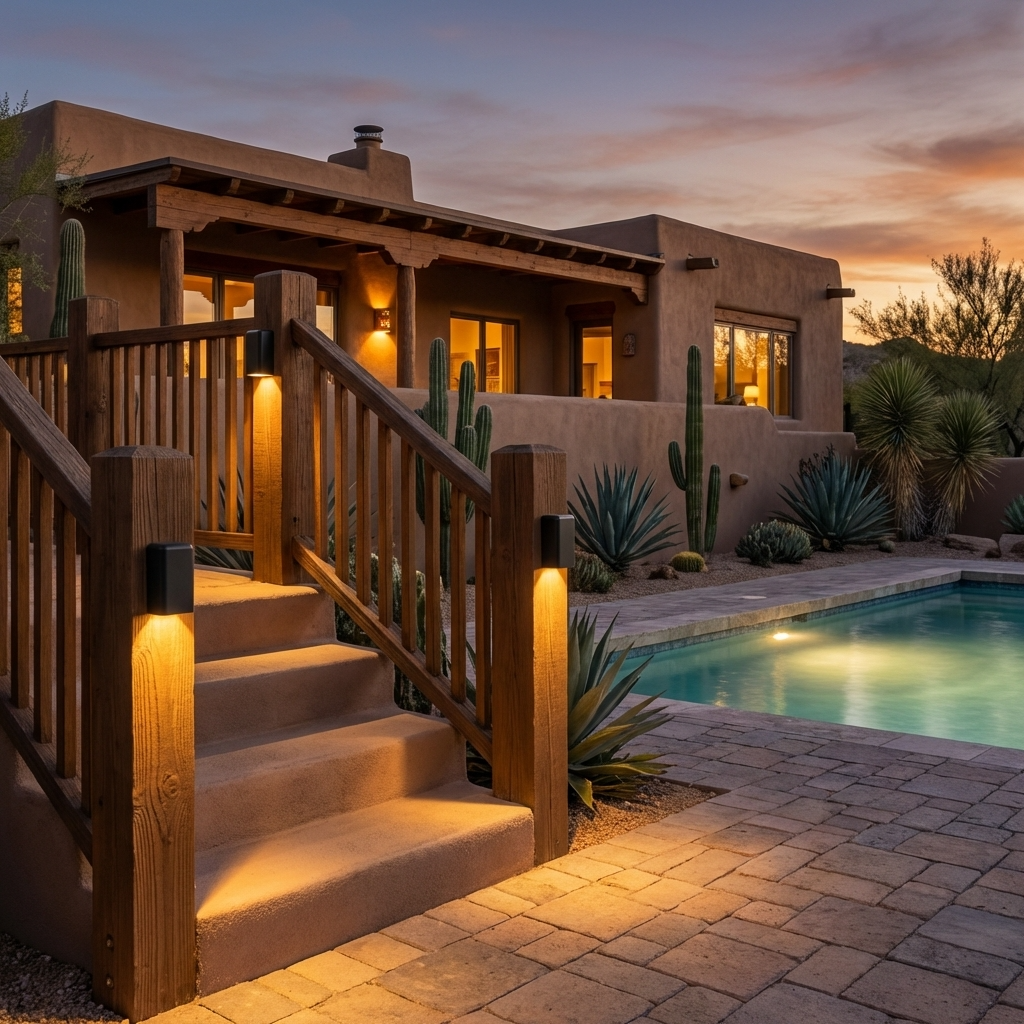

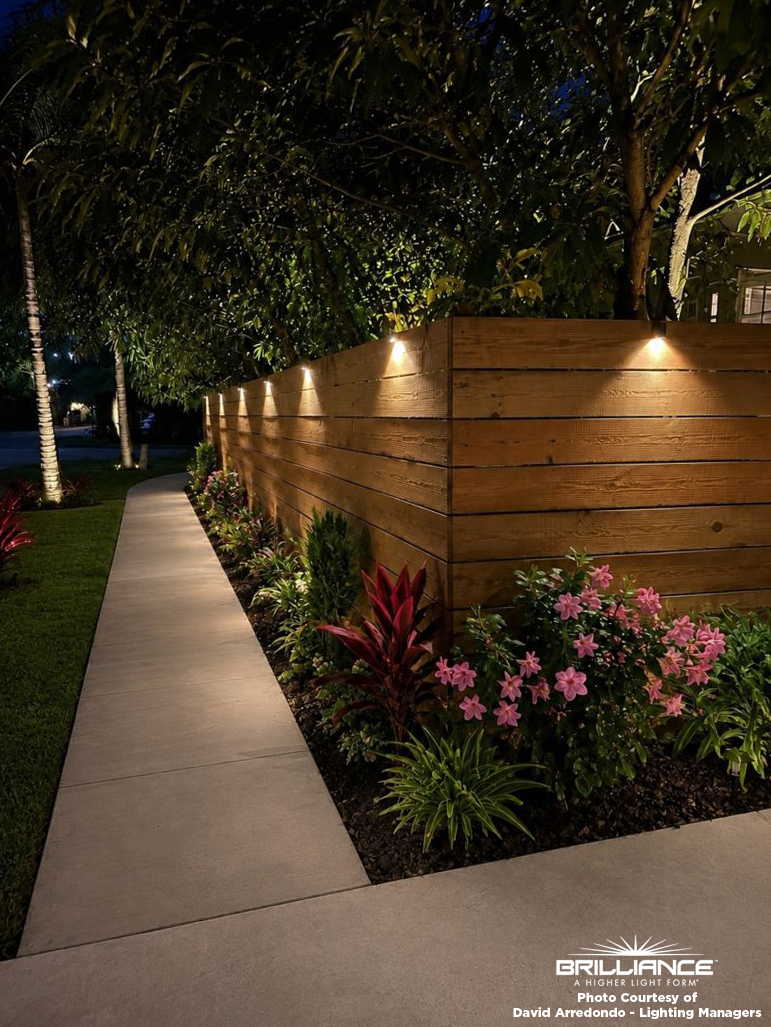

The Guadalupe is an integrated lamp and fixture that casts light from wall-mount applications in outdoor living areas. We recommend using LightingShrink connections for the Guadalupe. Dimmable with Brilliance dimmer and most magnetic transformers. Patent Pending.

ETL Certified for UL 1838 and CSA C22.2 Standards.

Reviews (0)

Description

INSTALLING THE FIXTURE

Using a torpedo level and the mounting template provided, align and mark the screw and cable holes.
Drill the appropriate holes for the building materials to which the fixture will be mounted. Pre drill if necessary.
Insert and thread in the bottom mounting screw.
Pass the fixture cable through the larger center hole.
Align the top mounting tab with the top pilot hole and insert the mounting screw.
Tighten the top mounting screw until snug and then finish tightening the bottom screw until snug.
Connect the fixture wires to the main cable coming from the transformer.
